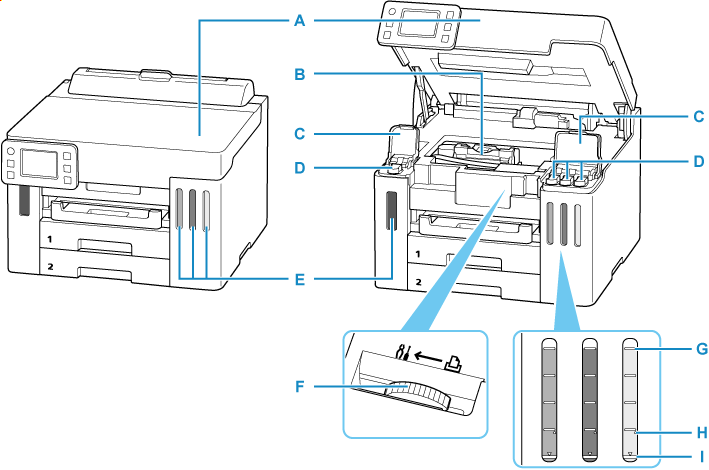

Inside View

A: Top Cover

Open to refill ink tanks and to remove jammed paper.

B: Print Head Holder

The print head is pre-installed.

C: Ink Tank Covers

Open to refill ink tanks.

D: Tank Caps

Open to refill ink tanks.

E: Ink Tanks

The black ink tank is on the left, and the color ink tanks (cyan, magenta, and yellow) are on the right.

If any ink levels are low, refill the low tanks.

• Refilling Ink Tanks

F: Ink Valve Lever

Operate when transporting a printer.

• Repairing Your Printer

G: Upper Limit Line

Indicates the maximum capacity of the ink.

H: Single Dot

Indicates the amount of ink required when replacing ink in print head.

I: Lower Limit Line

Indicates the lower limit of the sufficient amount of ink to print. Refill the ink tank before the amount of ink is below this line.
